Evaluating Apache Access Log Data

published 10/29/25

Over on my Capturing and Storing Apache Access Log Data post I dove into the configuration I'm using on a Digital Ocean machine that serves my static websites. I set that up years ago and now I want to evaluate what that data looks like.

Getting a Sense of the Data Size

A good place to start is getting a sense of how much data I have to work with. Let's download it and then count the files and the lines. I have the aws cli tool configured so that's an easy way to grab them:

$ aws s3 cp s3://mli-data/domino/logs/ domino_logs/ --recursive --exclude "*" --include "access.log-*.gz" --region us-east-1

Now let's switch over to Ruby and count things:

> paths = Dir.glob("domino_logs/access.log-*.gz")
> paths.count
=> 1613
> counts = paths.map { |path| Zlib.gunzip(File.binread(path)).lines.count }
> counts.sum
=> 3586336

Those files are compressed so we start by reading the binary data and then unzipping. Once we have the file contents we just count the number of lines. Does that count of files make sense? Are there any gaps in those logs? Let's see what we can find:

> paths.sort.first
=> "domino_logs/access.log-20210526.gz"
> paths.sort.last
=> "domino_logs/access.log-20251024.gz"
> (Date.new(2021, 5, 26)..Date.new(2025, 10, 24)).count
=> 1613

This look good to me. So there are 1,613 days worth of data and the total number of requests we are working with is 3,586,336. Let's get this ingested into Rails and see how else we can work with this data.

Modeling Apache Access Log Lines

To work with this data locally on my machine I'll do the most naive thing I can think of which is store each line of the data in a row in the database. I'll grab the filename and line number plus the unparsed text and throw that into the database. Then in a second pass I'll use a Regex to parse the line and "enhance" the row with the rest of the data. If the Regex fails then I'll know to look at the raw data and see what happened.

Here's the Rails migration I ended up with:

class CreateApacheLogItems < ActiveRecord::Migration[8.0]
  def change
    create_table :apache_log_items do |t|
      t.string :file_path, null: false
      t.integer :line_number, null: false
      t.string :raw, null: false
      t.boolean :enhanced, null: false

      t.string :website
      t.string :port
      t.string :remote_ip_address
      t.string :remote_logname
      t.string :remote_user
      t.datetime :requested_at
      t.string :request_method
      t.string :request_path
      t.string :request_params
      t.string :request_protocol
      t.string :response_status
      t.integer :response_size
      t.string :request_referrer
      t.string :request_user_agent

      t.timestamps

      t.index %i[file_path line_number], unique: true
    end
  end
end

With this in place I can create a job that takes a path and reads the data and creates the individual items in the database. I'll use that same glob pattern to enqueue the work:

> Dir.glob("domino_logs/access.log-*.gz").each { |path| ParseApacheAccessLogJob.perform_later(path) }

And it took about an hour with 6 workers to chew through this data. I had to tinker with the Regex a bit - here's what ended up working well:

/^(\S+):(\d+) (\S+) (\S+) (\S+) \[([^\]]+)\] "((?:[^"]|\\")*)" (\d+) (\d+) "((?:[^"]|\\")*)" "((?:[^"]|\\")*)"/

I can't imagine anyone will read that but who knows. To be honest I didn't write that myself - I worked with Claude to come up with it. Did we get all the data? Let's see:

> ApacheLogItem.count
=> 3586336
> ApacheLogItem.where(enhanced: false).count
=> 0

Hell yeah counts match and zero records failed to match the Regex.

Remove Other Websites

With all the data loaded into Rails we can start whittling down to just the data we want to work with. Let's start by removing other websites:

> other_website_items = ApacheLogItem.where.not(website: "www.jonallured.com")
> other_website_items.count
=> 2228247
> other_website_items.delete_all
> ApacheLogItem.count
=> 1358089

Sending HTTP to HTTPS

The next thing I zeroed in on was a huge amount of items that were nothing more than sending HTTP traffic over to the HTTPS port. In fact when I reviewed the traffic on port 80 I decided it was all garbage - we don't need this stuff:

> port_80_items = ApacheLogItem.where(port: "80")
> port_80_items.count
=> 327511
> port_80_items.delete_all
> ApacheLogItem.count
=> 1030578

While we are on the topic of HTTPS, I noticed some traffic from Let's Encrypt that matches their docs on sending challenges so let's get rid of that stuff:

> lets_encrypt_items = ApacheLogItem.where("request_user_agent ILIKE ?", "%letsencrypt%")
> lets_encrypt_items.count
=> 868
> lets_encrypt_items.delete_all
> ApacheLogItem.count
=> 1029710

Not OK Responses

My goal is to find real traffic from all this noisy data and so I looked through responses that were not 200 - OK and decided I didn't need them. Let's get rid of the other status codes:

> other_status_items = ApacheLogItem.where.not(response_status: "200")
> other_status_items.count
=> 298275
> other_status_items.delete_all
> ApacheLogItem.count
=> 731435

Not GET Requests

Similar to response status where I only want 200s, I really only want requests that use the GET method. These are static sites and so any other type of request is junk:

> other_method_items = ApacheLogItem.where.not(request_method: "GET")
> other_method_items.count
=> 3199
> other_method_items.delete_all
> ApacheLogItem.count
=> 728236

Bot Traffic

I started poking at how I might isolate the Bot Traffic so I could remove it but quickly found that this is pretty complex. After some trial and error I decided that it was worth looking for a gem and found browser. Let's pull that in and then use it to find and delete bot traffic:

> bot_items = ApacheLogItem.all.select { |item| Browser.new(item.request_user_agent).bot? }
> bot_items.count
=> 326233
> ApacheLogItem.where(id: bot_items.map(&:id)).delete_all
> ApacheLogItem.count
=> 402003

Requests With Params

Looking at the data in the request_params column showed a lot of probing for security vulnerabilities but it can't all be junk right? I spent a bit of time spot checking and was not able to find any examples where the params seems legit so I'm actually just going to remove all of it!

> items_with_params = ApacheLogItem.where.not(request_params: nil)
> items_with_params.count
=> 1199
> items_with_params.delete_all
> ApacheLogItem.count
=> 400804

Normalizing Some Oddities

During some sampling of the data I noticed a couple oddities in the request path data:

• paths that start with double slashes
• paths that include the website

I chatted with Claude about this and we decided it was weird but fine and we could just normalize it:

> double_slash_items = ApacheLogItem.where("request_path ~ ?", "^\/\/")
> double_slash_items.count
=> 16
> double_slash_items.each { |item| item.update(request_path: item.request_path.sub("//", "/")) }

> bonus_website_items = ApacheLogItem.where("request_path ~ ?", "^http")
> bonus_website_items.count
=> 21
> bonus_website_items.each { |item| item.update(request_path: item.request_path.sub("https://www.jonallured.com", "")) }

Apache Directory Listings

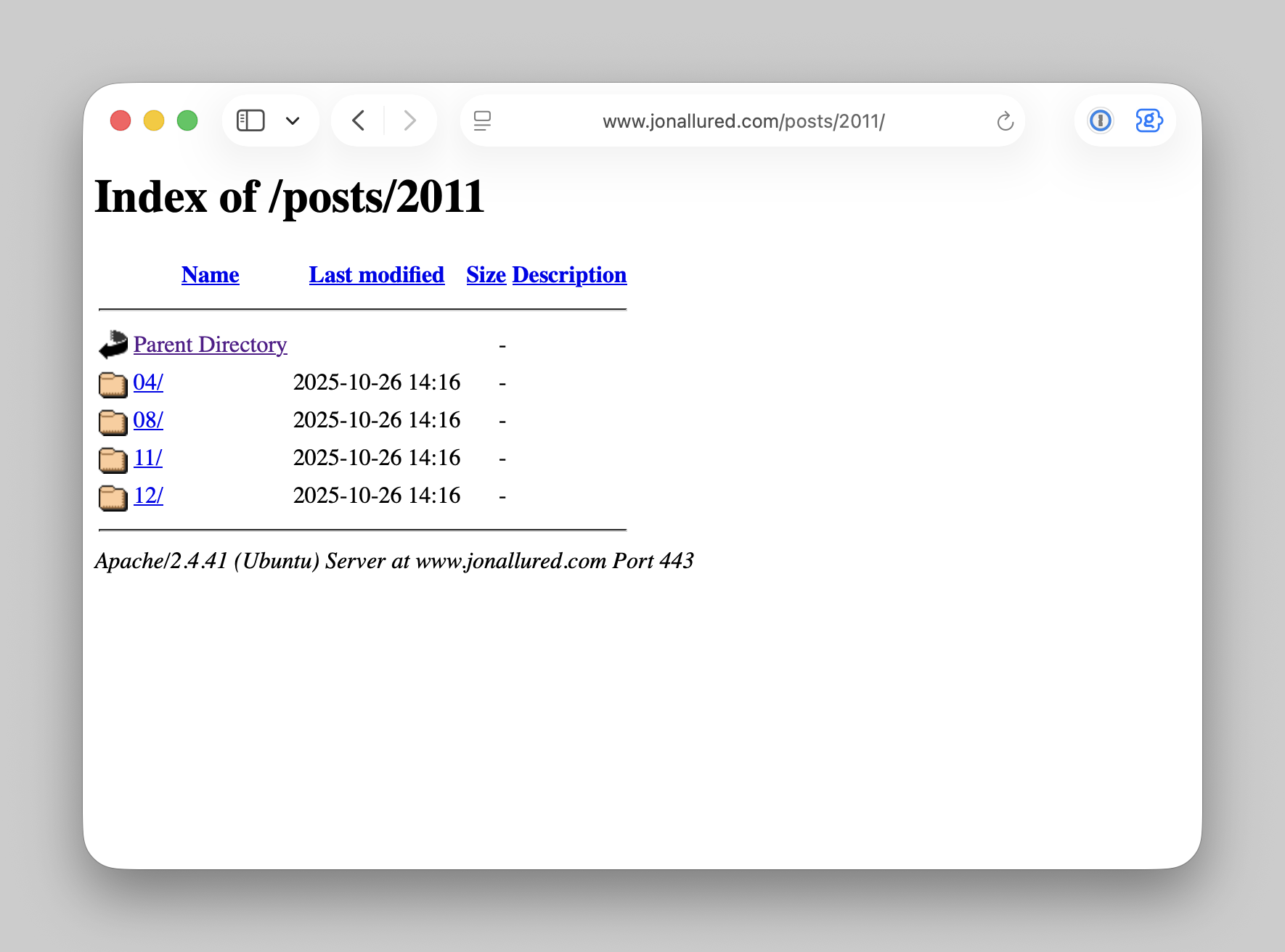

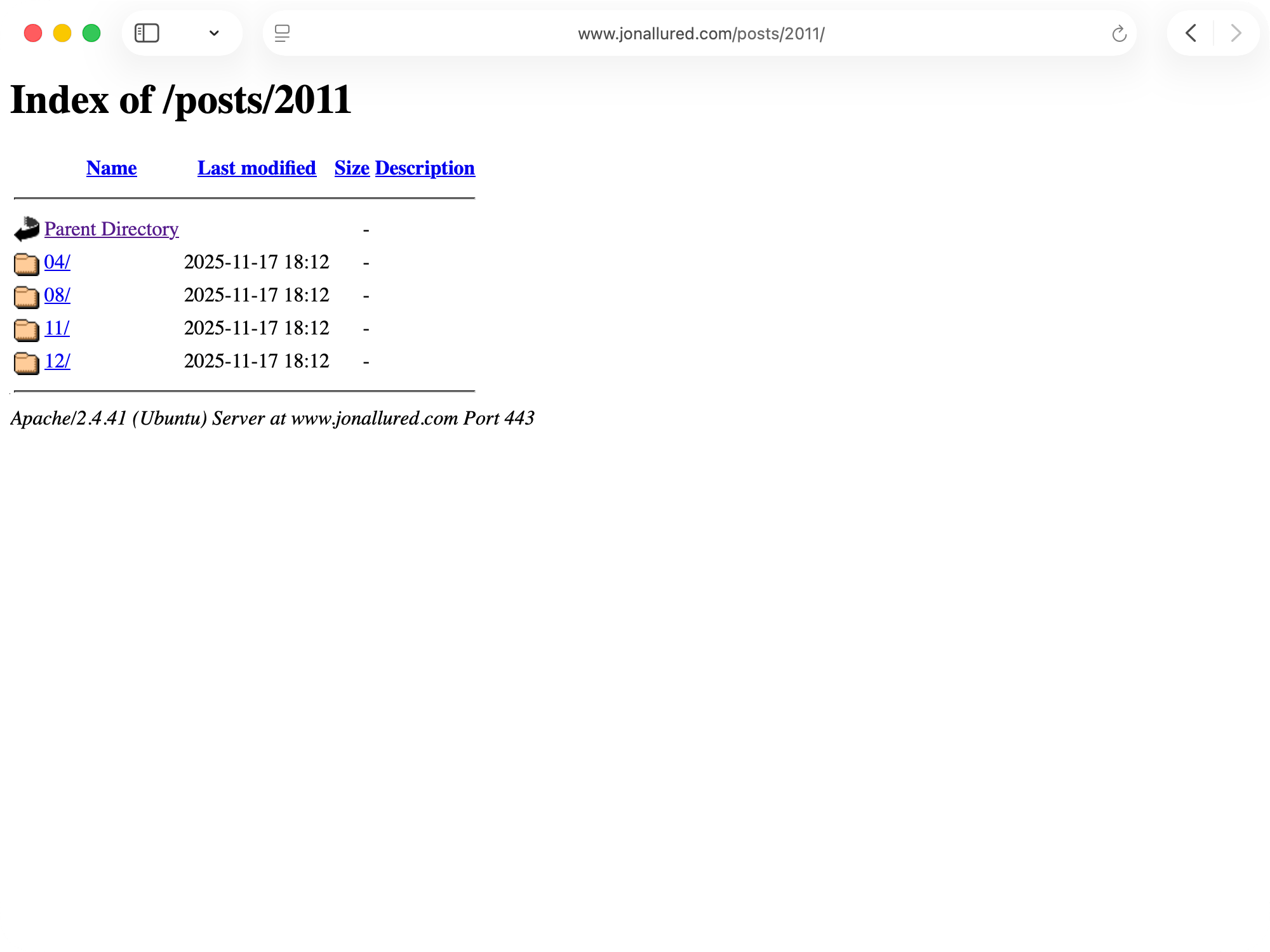

Unbeknownst to me I have been serving Apache Directory Listing pages this whole time - looks like this:

click for bigger

There is an Apache doc page that has the fix: Options -Indexes which can be added to my server config. With this in place this traffic will end up in the 403 category. I actually SSHed into my server, made this change, and confirmed that it's not working anymore. That does not help me here though because I still need to find this traffic and filter it out.

What I want to remove are requests like these:

GET /posts
GET /posts/
GET /posts/2025
GET /posts/2025/
GET /posts/2025/10
GET /posts/2025/10/
GET /posts/2025/10/25
GET /posts/2025/10/25/
...

But this also applies to any of the folders on the site. So let's start by finding all the requests that have a trailing slash. Then add to that list each of those paths but with the trailing slash removed. Finally I can use that list to delete all the traffic to folders:

> folders_with_slash = ApacheLogItem.where("request_path ~ ?", ".\/$").pluck(:request_path).uniq
> folders_without_slash = folders_with_slash.map { |path| path[..-2] }
> folder_paths = folders_with_slash + folders_without_slash
> folder_items = ApacheLogItem.where(request_path: folder_paths)
> folder_items.count
=> 6944
> folder_items.delete_all
> ApacheLogItem.count
=> 393860

Automated Traffic

The next type of traffic to remove are automated requests. RSS readers will request /atom.xml on a schedule. The Keybase service will make a regular request to fetch my website proof. And for whatever reason I still have some traffic to /robots.txt even after removing as much of that traffic as I could using the User Agent. Let's get rid of all of this:

> automated_paths = %w[/atom.xml /keybase.txt /robots.txt]
> automated_items = ApacheLogItem.where(request_path: automated_paths)
> automated_items.count
=> 283320
> automated_items.delete_all
> ApacheLogItem.count
=> 110540

Curating What's Left

At this point I'm looking through what's left and mostly I like what I see. Here's a query to get the current month's data:

> ApacheLogItem.where(requested_at: Time.now.all_month).group(:request_path).count

But I see some things I want to curate:

• collapse /index.html to just /
• remove requests for css files
• remove requests for images
• remove requests for pdfs

Which are pretty easy to do:

> index_items = ApacheLogItem.where(request_path: "/index.html")
> index_items.count
=> 46
> index_items.update_all(request_path: "/")

> asset_items = ApacheLogItem.where("request_path ~ ?", "(css|png|pdf)$")
> asset_items.count
=> 28286
> asset_items.delete_all
> ApacheLogItem.count
=> 82254

Good Enough

Starting with 3,586,336 requests and working it down to 82,254 is pretty good so I'm calling this data exploration done. What I'll look into now is taking this local work and figuring out how I want to do this on my production Heroku deployment. I'll want to add some UI on top of this so I can poke around even more in case there are other ways to filter out junk traffic.

As a treat for making it all the way to the end of this very long-winded post here's the top ten pages on my site for the full month of September 2025:

> september_stats = ApacheLogItem.where(requested_at: (Time.now - 1.month).all_month).group(:request_path).count
> september_data = september_stats.map(&:to_csv).join
> File.write("september_pageviews.csv", september_data)

These numbers seem high to me - I bet there's more to filter out but that's something for Future Jon to figure out.
